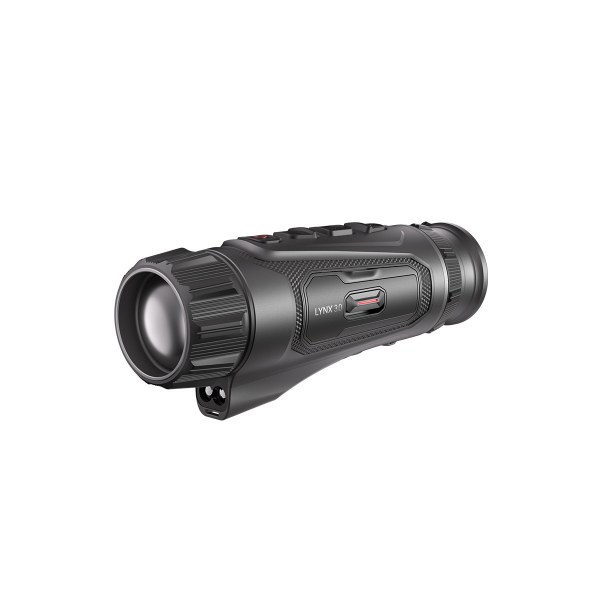

HIKMICRO Lynx LQ35L 3.0 35mm

HIKMICRO Lynx LQ35L 3.0 35mm Thermal Monocular LRF

High-resolution 640×512 thermal sensor paired with a 35mm F1.0 lens for exceptional detail and clarity.
Long-range detection up to 1800 metres, ideal for hunting, surveillance, and professional field work.
Integrated 1000m Laser Range Finder (LRF) providing accurate, on-screen distance measurement.
Wide 12.5° × 7.5° field of view, offering strong situational awareness and easy target acquisition.
Advanced AI Image Pro 3.0 and Zoom Pro algorithms deliver improved contrast, sharpness, and image stability.
Robust yet lightweight at 354.5g, with a replaceable 18650 battery giving up to 4.5 hours runtime in harsh conditions.

The Lynx 3.0 , redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.

For the First time the LQ35 introduces an integrated Laser Range Finder (LRF) with a 905 nm wavelength and a maximum measuring range of 1000m, providing precise distance measurement directly within the thermal imaging system

Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.

At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.

Max. Resolution
640 × 512
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm – 14 μm
NETD
< 15 mK (@25°C), F#=1.0
Lens (Focal Length)
35 mm, f1.0
Focus Mode
Focus Ring
Detection Range
1800 m
Min. Focusing Distance
3.5 m
Magnification
1.9× – 15.2× (8×)
Field of View (H × V)
12.5° × 7.5° / 21.9 m × 13.2 m @100 m
Display
1920 × 1080, 0.49 in, AMOLED
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil
6 mm
Eye Relief
20 mm
Diopter (Range)
-5D to +3D
Brightness Adjustment
Yes
Tone Adjustment
Cold, Warm
Contrast Adjustment
Yes
Zoom Pro
Yes
HSIS (HIKMICRO Shutterless Image System)
Yes
Image Pro 3.0
Yes
Record Video
Yes
Capture Snapshot
Yes
Audio Recording
Yes
Standby Mode
Yes
Built-in Memory
64 GB EMMC
PIP
Yes
Hotspot
2.4 GHz / 5 GHz Wi-Fi
Hot Track
Yes
Distance Measurement
Yes
Local Album
Yes
Battery Type
Replaceable & Rechargeable Li-ion 18650
Battery Operating Time
5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
Type-C Power Supply
5V DC, 2A
External Power Supply
Supported, Direct Charging Supported
Safety Class for Laser
Class 1
Wavelength
905 nm
Max Measuring Range
1000 m
Min. Measuring Range
10 m
Measurement Accuracy
±1 m
Protection Level
IP67
Dimension
169.6 × 53.6 × 49.5 mm
Weight
354.5 g (with battery)
Working Temperature
-30°C to 45°C (-22°F to 113°F)
Humidity
≤ 90%

Up to 640×512 Thermal resolution
High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
35 mm, F1.0 lens with thermal detection range up to 1800 m
HIKMICRO Shutterless Imaging System (HSIS)
AI-powered Image Pro 3.0 and Zoom Pro algorithms
0.49-inch OLED display with 1920 × 1080 resolution
Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
Lightweight design at 354.5 g, with a pocket-sized build
Integrated 1000m Laser Range Finder

Main Unit: 3 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
